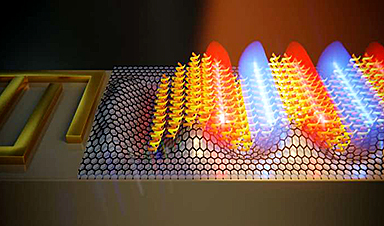

A team of researchers from the Institute for Optoelectronic Systems and Microtechnology at Universidad Politécnica de Madrid (UPM) has designed a biosensor capable of identifying proteins and peptides in quantities as low as a single monolayer. For that, a surface acoustic wave (SAW), a kind of electrically controlled nano earthquake on a chip, is generated with an integrated transducer to act on a stack of 2D materials coated with the biomolecules to be detected.

In particular, quasiparticles that are part light (photons) and part matter (electrons and lattice vibrations), called surface plasmon-phonon polaritons, are formed at the rippled stack interplaying strongly with the molecules atop.

Organic molecules absorb certain wavelengths of light in the mid-infrared range that are characteristic of their  and structure. Therefore, this set of absorption resonances, called their vibrational fingerprint, allows for the identification of the organic compound.

“By strengthening the interaction between light and biomolecules deposited on top of the sensor, we would be able to identify analytes requiring smaller quantities, reaching levels as low as a single monolayer,” says Raúl Izquierdo, first author of this study.

According to Jorge Pedrós, leading scientist of the study, “One advantage of this mechanism is that SAWs are actively controlled through a high-frequency voltage, allowing to easily switch between an ON configuration, at which interaction is increased, and an OFF configuration, without any improvement to the signal. This measuring scheme increases the sensor resolution.”

“In addition to the design of the sensor and the calculations of its performance, we also provide a mathematical method to extract apparently hidden quantitative information, further increasing the sensitivity of the sensor,” says Izquierdo.

For that, the molecules of the analyte and the surface plasmon-phonon polaritons are modeled as oscillators that interact with each other, while both are driven by an external force (light incident on the sensor). Despite its simplicity, this model is shown to reproduce nicely the results from the calculations.

To conclude, Pedrós says, “We are confident that this study will contribute to the development of new lab-on-chip devices, combining the chemical fingerprinting capability of this novel SAW-driven biosensor with other acoustic functionalities such as SAW-based mass sensing or droplet streaming and mixing in microfluidic circuits.”

This story is part of Science X Dialog, where researchers can report findings from their published research articles. Visit this page for information about ScienceX Dialog and how to participate.

More information: Raúl Izquierdo-López et al, Surface-acoustic-wave-driven graphene plasmonic sensor for fingerprinting ultrathin biolayers down to the monolayer limit, Biosensors and Bioelectronics (2023). DOI: 10.1016/j.bios.2023.115498
